Stylus & Midline Assembly

                                                                                                                                                                                                             Step by step guide, Best Practices, and Guide Download

​

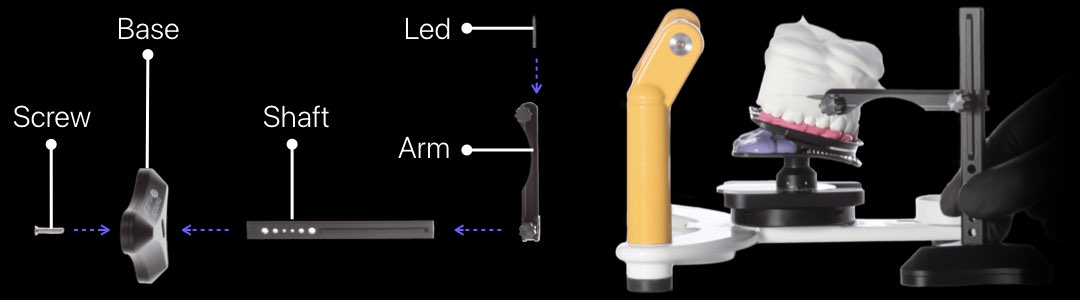

Step 1: Stylus Assembly

Secure the shaft with the screw from the bottom of the base.

Loosen the stylus arm screws and insert onto the stylus shaft and secure position with the screw. Insert led into the tip and secure the led with the led security screw.

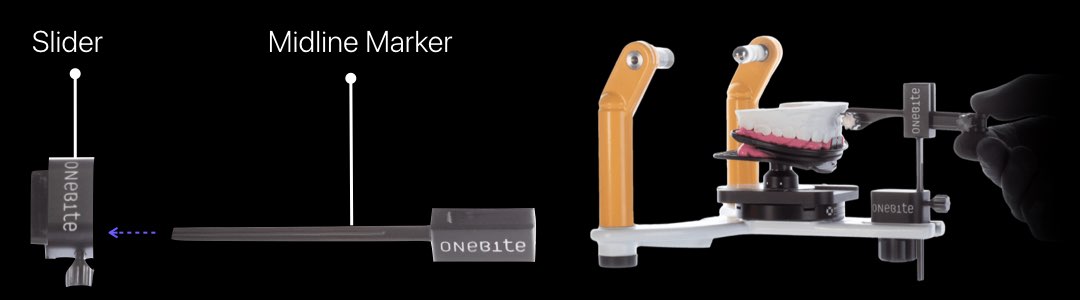

Step 2: Midline Marker Assembly

Insert midline marker into the slider and adjust the height using the slider screw. Remove the stylus arm from the shaft and insert it between the midline marker fork. Proceed to make the midline marking on the model.
